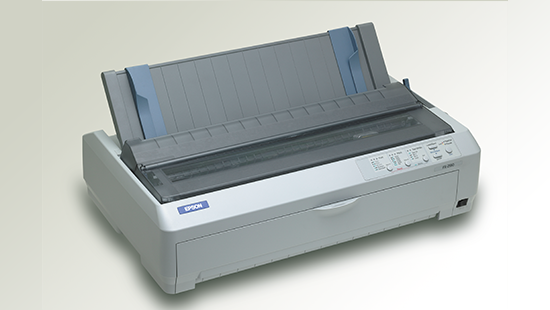

Epson FX-2190II Dot Matrix Printer

Epson FX-2190II Dot Matrix Printer

EXPERIENCE RUGGED RELIABILITY AND POWERFUL PERFORMANCE



Print Characteristics:

---

Bitmap Fonts:Epson Draft: 10, 12, 15 cpi

Scalable Fonts:Epson Roman / Epson Sans Serif

Barcode:EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET

Paper Media:

---

Cut Sheet (Single Sheet):Entry: Front
Length: 100 - 420 mm | (3.9 - 16.5”)
Width: 100 - 420 mm | (3.9 - 16.5”)
Thickness: 0.065 - 0.14 mm | (0.0025 - 0.0055”)
Entry: Rear
Length: 100 - 420 mm | (3.9 - 16.5”)
Width: 100 - 420 mm | (3.9 - 16.5”)
Thickness: 0.065 - 0.14 mm | (0.0025 - 0.0055”)

Cut Sheet (Multi-part Sheet):Entry: Front
Length: 100 - 420 mm | (3.9 - 16.5”)
Width: 100 - 420 mm | (3.9 - 16.5”)
Thickness: 0.12 - 0.46 mm | (0.0047 - 0.018”)
Entry: Rear
Length: 100 - 420 mm | (3.9 - 16.5”)
Width: 100 - 420 mm | (3.9 - 16.5”)
Thickness: 0.12 - 0.46 mm | (0.0047 - 0.018”)

Continuous Paper (Single Sheet / Multi-part):Copies:
Original + 4 copies
Entry: Front / Rear / Bottom
Length: 101.6 - 558.8 mm | (4.0 - 22.0”)
Width: 101.6 - 406.4 mm | (4.0 - 16.0”)
Thickness: 0.065 - 0.46 mm | (0.0025 - 0.018”)

Envelope (No.6):Entry: Rear
Length: 92 mm | (3.6”)
Width: 165 mm | (6.5”)
Thickness: 0.16 - 0.52 mm | (0.0063 - 0.0205”)

Envelope (No.10):Entry: Rear
Length: 105 mm | (4.1”)
Width: 241 mm | (9.5”)
Thickness: 0.16 - 0.52 mm | (0.0063 - 0.0205”)

Label (Base Sheet):Entry: Buttom
Length: 101.6 - 558.8 mm | (4.0 - 22.0”)
Width: 101.6 - 406.4 mm | (4.0 - 16.0”)
Thickness: 0.16 - 0.19 mm | (0.0063 - 0.0075”)

Card:Entry: Front / Rear
Length: 100 - 148 mm | (3.9 - 5.8”)
Width: 100 - 148 mm | (3.9 - 5.8”)
Thickness: 0.22 mm | (0.0087”)

Roll Paper:Entry: Rear
Diameter: 127mm | (5”)
Width: 216 mm | (8.5”)
Thickness: 0.07 - 0.09 mm | (0.0028 - 0.035”)

Line Spacing:4.23mm (1/6”) or programmable in increments of 0.059mm (1/432”)

Consumables:

---

Ribbon Cartridge Black:Standard: Fabric Ribbon Cartridge (Black)
Ribbon Life: Approx. 12 million Characters^*1
