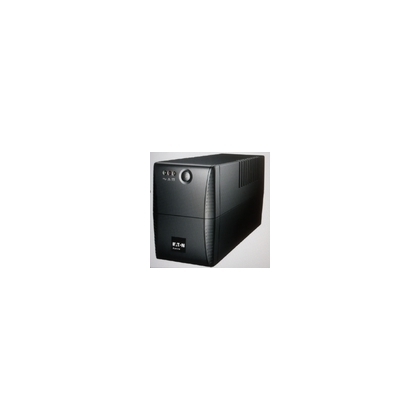

Eaton Line Interactive UPS with AVR of Rating 0.6 KVA
Roll over image to zoom in
₹4,590.00₹5,100.00 (-10%)
Eaton Line Interactive UPS with AVR of Rating 0.6 KVA
Specifications
Rating (in KVA) : 0.6
Technology : MOSFET-PWM
Inverter Efficiency (%) : 60% or better
Minimum Guaranteed Battery Backup time (Minutes) on Full Load : 15
Warranty for Line Interactive UPS : 2 Years
Warranty for the battery from the date of delivery : 1 Year
Rated Output (Volt) with Total Harmonic Distortion (%) : Single Phase Sinewave 230v AC 50Hz with Total Harmonic Distortion as <3%
Variation in AVR output in AC mode (AVR Voltage regulation) : 230 Volts +/-9%
Eaton Line Interactive UPS with AVR of Rating 0.6 KVA
GENERIC
| Rating (in KVA) | 0.6 |
| Technology | MOSFET-PWM |
| Inverter Efficiency (%) | 60% or better |
| Minimum Guaranteed Battery Backup time (Minutes) on Full Load | 15 |
| Warranty for Line Interactive UPS | 2 Years |
FEATURES
| Rated Output (Volt) with Total Harmonic Distortion (%) | Single Phase Sinewave 230v AC 50Hz with Total Harmonic Distortion as <3% |
| Input (Volt) | Single Phase AC (160-280V) |
| Salient Features | Maximum 10 milliseconds Switching over time,Load Power Factor >/=0.6,+/-10% Variation in output voltage in battery mode,</=0.5 Hz Variation on output frequency in battery mode,UPS shall withstand 10% overload for at least 10 minutes in mains mode,UPS shall withstand 10% overload for at least 5 minutes in mains mode |
| Variation in AVR output in AC mode (AVR Voltage regulation) | 230 Volts +/-9% |
| Protection | Under voltage Protection (Input Voltage <160 V),Overvoltage Protection (Input Voltage>280V),Short Circuit of UPS,Low Battery,Overload |
Battery/Backup Bank
| Type of battery | SMF-VRLA confirming to JISC-8702 Pt 1,2 &3 |
| Location of Battery | Inside the Enclosure of UPS |
| Battery capacity (Ah) | 7Ah |
| Minimum Guaranteed VAH provided to meet or exceed minimum guaranteed Back up time | 84 |
| Battery Make ( hint: Name of the Brand) | Eaton |
| Battery Model Number | RBC2 |
| Number of Batteries | 1 |
| Weight of the Battery (kg) | 2.4 |
| Warranty for the battery from the date of delivery | 1 Year |
CONSTRUCTIONAL
| Enclosure | ABS |
| Degree of protection | IP 20 |
| Gross Weight (UPS+Battery) (kg) | 4.8 |
BUYER SPECIFIC REQUIREMENT
| Environmental Test Report Requirements | Damp heat Test at 45 degree,RH -95% for 2-cycle as per IS:9000 pt-5/sec-1,Dry heat Test at 45 degree for 16 Hrs. as per IS:9000 pt-3/sec-5,Cold Test as per IS:9000 pt-2/sec-4,NA |
| Any Other Requirements | As per Meity (Government of India) guidelines UPS shall have valid IS16242-Part 1 CRS certification |
CERTIFICATION / TEST REPORT
| Type of lab which carried out Test of Complete Product to prove the conformity of product as per specification | Certificate of Govt.Lab/NABL/ILAC accredited for UPS Testing |
| Agree to provide all relevant documents Test Reports/supporting document /reports etc to the buyer at the time of bidding or on demand | Yes |
